Toyota Land Cruiser 76
The Land Cruiser 76 is the icon of 4x4 station wagons. Built to last, it combines simple mechanics, legendary toughness, and uncompromising off-road capability. A vehicle designed for those who value reliability above all else.
Technical Specifications
ENGINE
- Displacement (cc) : 4164
- Fuel System : External injection
- Fuel type : Diesel
TRANSMISSION
- Transmission : All time 4x4, Part time manual 4x4
- Gearbox : Manual, Automatic
DIMENSIONS
- Dimensions (Lxwxh) in mm : 4720 x 1770 x 1955
- Ground clearance (mm) : 230
- Wheelbase (mm) : 2730
WEIGHT/CAPACITIES
- Fuel tank capacity (L) : 130
- Gross vehicle weight (kg) : 3060
- Number of seats : 9
WARRANTY
- Manufacturer Warranty : 3 years / 100 000 Km
- Retail Network : TOYOTA
Models available
4.2L DIESEL 5MT TROOP CARRIER 5DR
Land Cruiser 76 4.2L DIESEL 5MT TROOP CARRIER 5DR
Technical Specifications
ENGINE |
|
| Displacement (cc) | 4164 |
| Engine Type | Cylinder in line |
| Fuel System | External injection |
| Fuel type | Diesel |
| High altitude compensator | 1084 |
| Horse power Hp | 131 |
| Max power HP/rpm | 131/3800 |
| Max power kW/rpm | 96/3800 |
| Max torque Nm | 285/2200 |
| Number of cylinders | 6 |
| Valve drive mode | Overhead Camshaft |
| Valves/cylinder | 2 |
 BODY |
|
| Body style | Station wagon |
| Chassis | Backbone-type frame |
| Keys Type | Classic |
| Number of doors | 5 |
TRANSMISSION |
|
| Front differential | Manual locking |
| Gearbox | Manual |
| Rear differential | Manual locking |
| Transmission | Part time manual 4x4 |
DIMENSIONS |
|
| Approach angle | 35 |
| Departure angle | 25 |
| Dimensions (Lxwxh) in mm | 4860 x 1800 x 1955 |
| Front tread (mm) | 1515 |
| Ground clearance (mm) | 230 |
| Rear tread (mm) | 1420 |
| Turning radius (m) | 6.3 |
| Wheelbase (mm) | 2730 |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2425 |
| Fuel tank capacity (L) | 130 |
| Gross vehicle weight (kg) | 3060 |
| Number of seats | 10 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
 SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Leaf |
 TYRES |
|
| Type pneu | Off-road |
| Tyre dimension | 225/95 R16 |
 PERFORMANCES |
|
| Max speed (km/h) | 150 |
Equipments
ACTIVE SAFETY |
|
| ABS | Yes |
| Demister | Rear windows |
| Door unlock alert | Yes |
| Headlamp warning | Yes |
| Headlamps | Halogen |
| High position brake lamp | Yes |
EXTERIOR |
|
| Adjustable side mirrors | Manuals |
| Bumper - Front&Rear | Black |
| Door handles | Chrome |
| Door mirrors | Black |
| Folding side mirrors | Manuals |
| Footboard | Side step, Rear step |
| Front bumpers | Black |
| Front grill | Black |
| Mudguards | Rear, Front |
| Rear bumpers | Black |
| Roof rack | Yes |
| Schnorkel | Yes |
| Suspension | Standard |
| Towing hook | Rear, Front |
| Wheels | Steel |
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height and reach adjustable |
| Air conditioning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Connectivity | USB |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Driver seat | Reach adjustable |
| Front seats | 3 |
| Gearshift & Brake lever | Urethane |
| Inside opener | Fuel lid |
| Locking glove box | Yes |
| Loud speakers | 2 |
| Luggage compartment | Yes |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Rear, Front |
| Radio | Radio CD |
| Room lamps | Yes |
| Sequential electric windows | Driver |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Upholstery | Vinyl |
PASSIVE SAFETY |
|
| Airbags | Passenger, Driver |
| Fire extinguisher | Yes |
| Headrests | Rear, Front |
| Number of spare wheels | 1 |
| Retractable steering wheel | Yes |
| Seatbelts - 2nd row | 2 x 3 points + 1 x 2 points |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Spare wheel | Steel |
| Spare Wheel Location | Back Door |

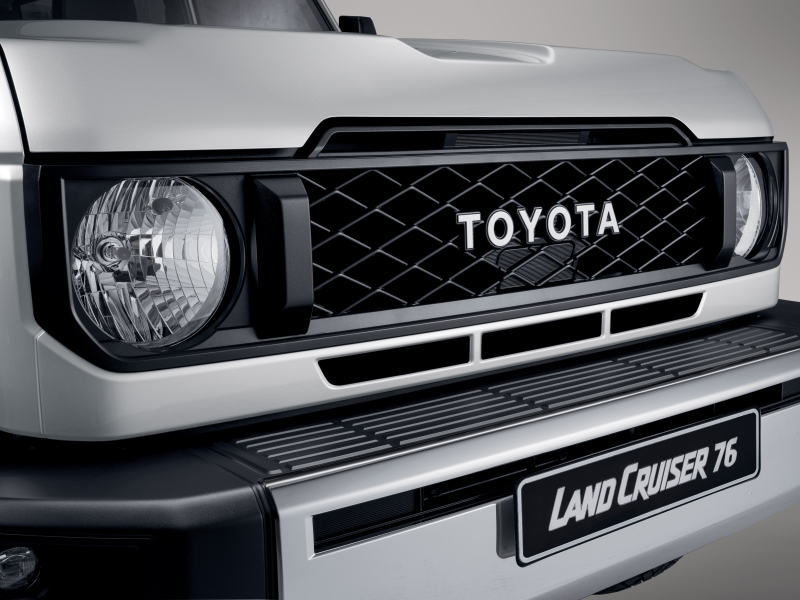

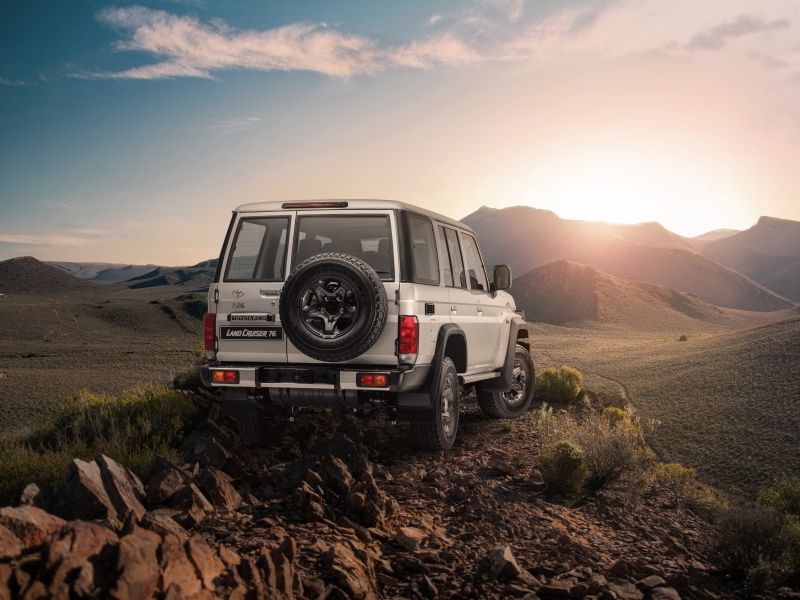

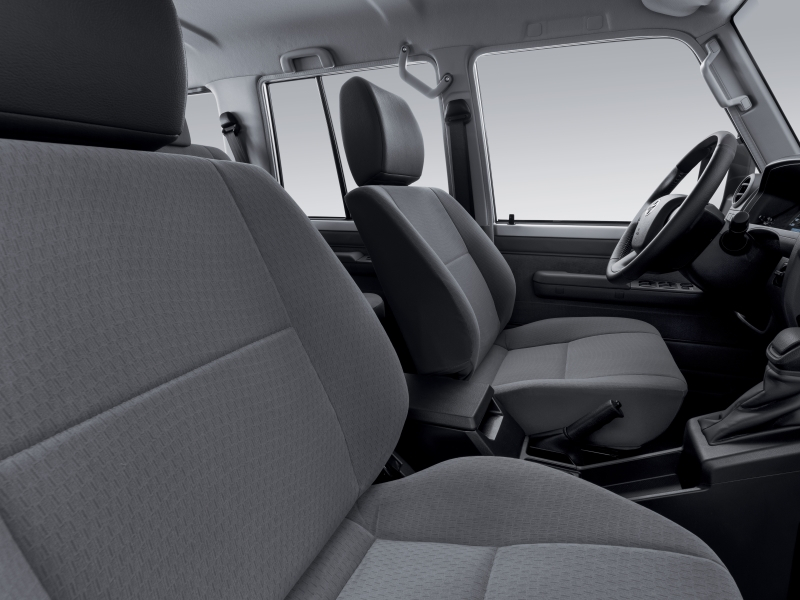

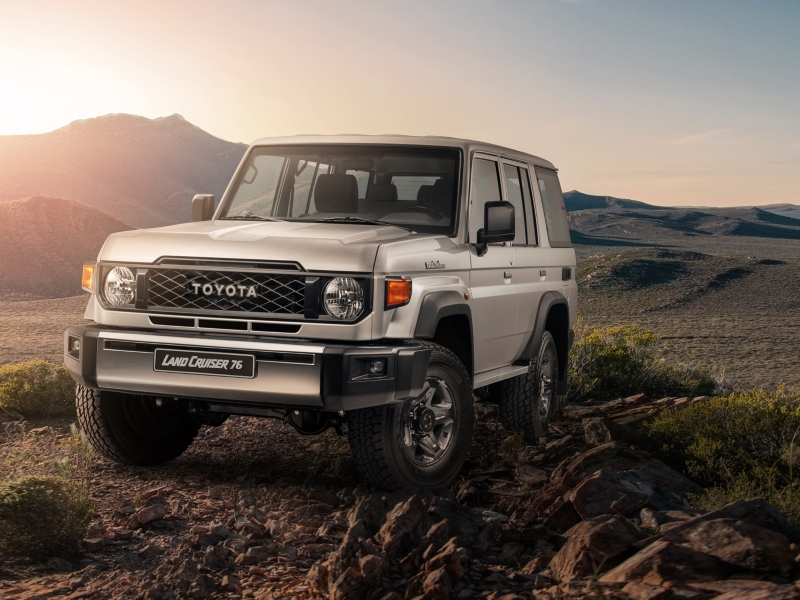

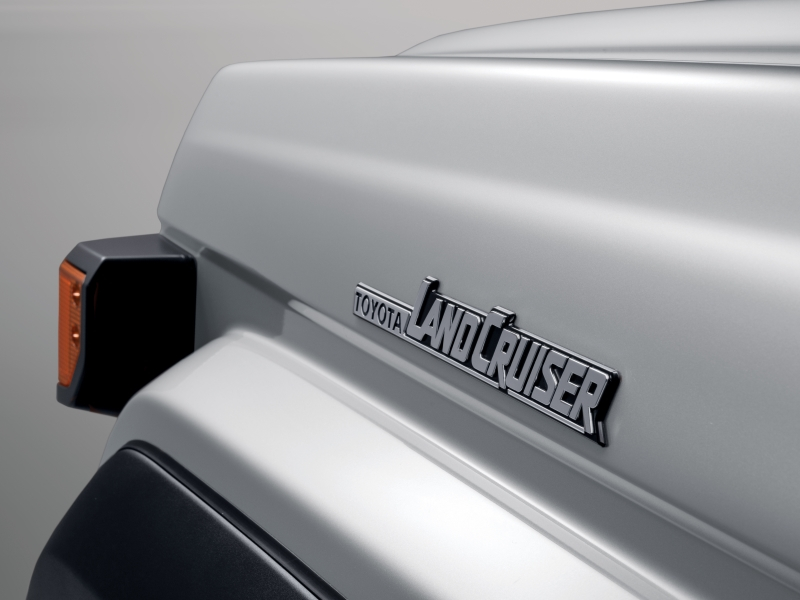

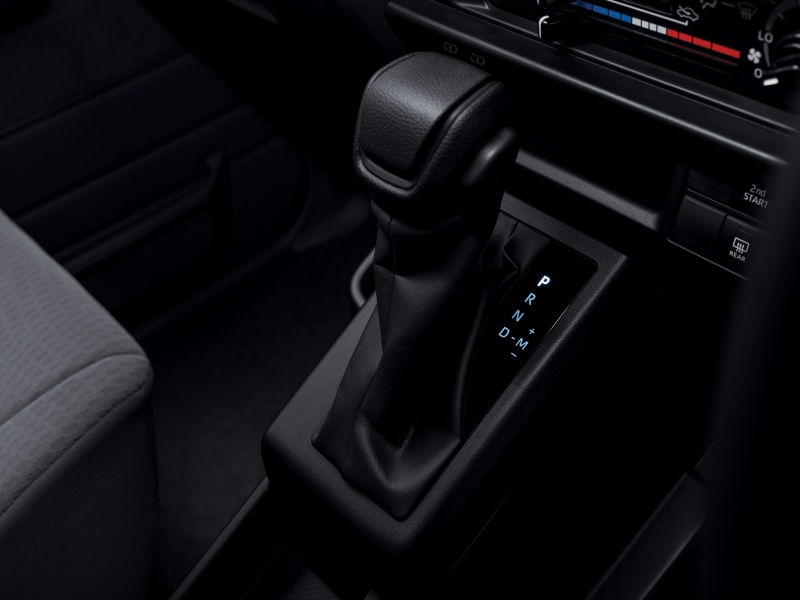

Gallery
Non-contractual images
